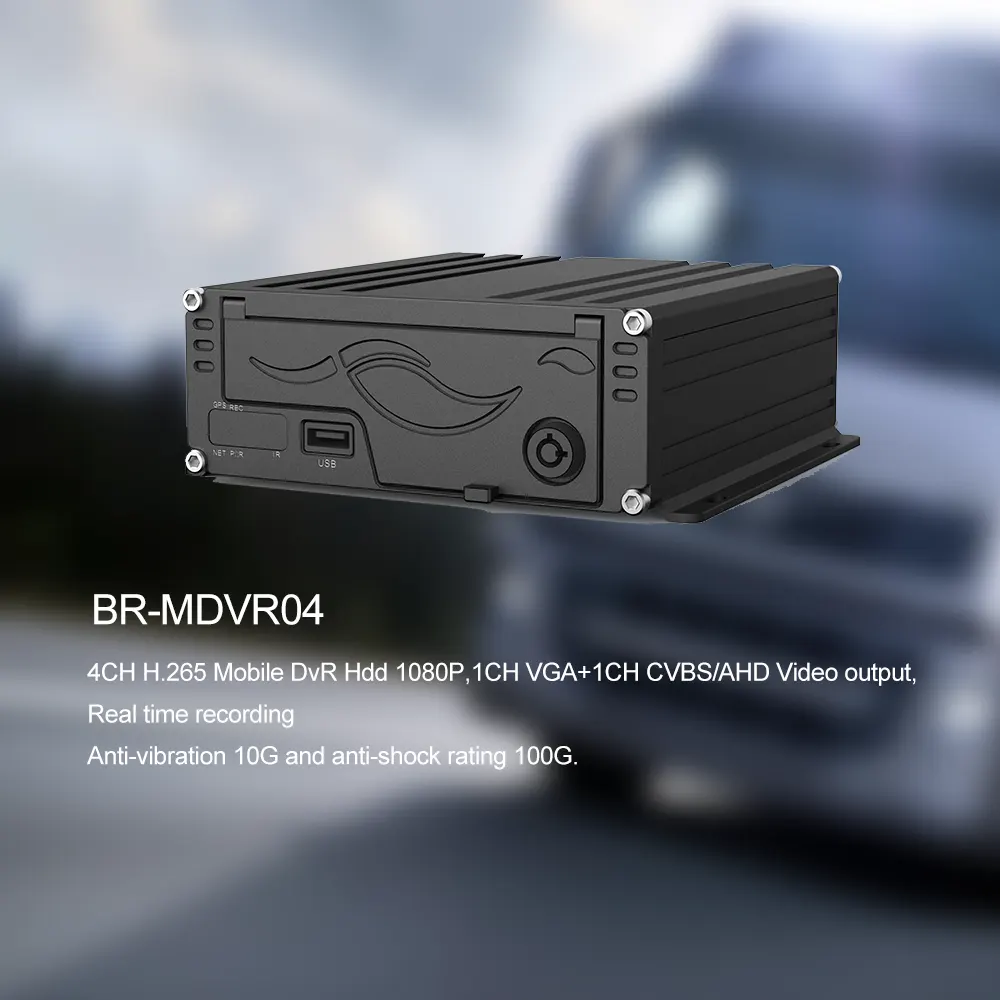

BR-MDVR04 System 4 Channel AHD DVR System

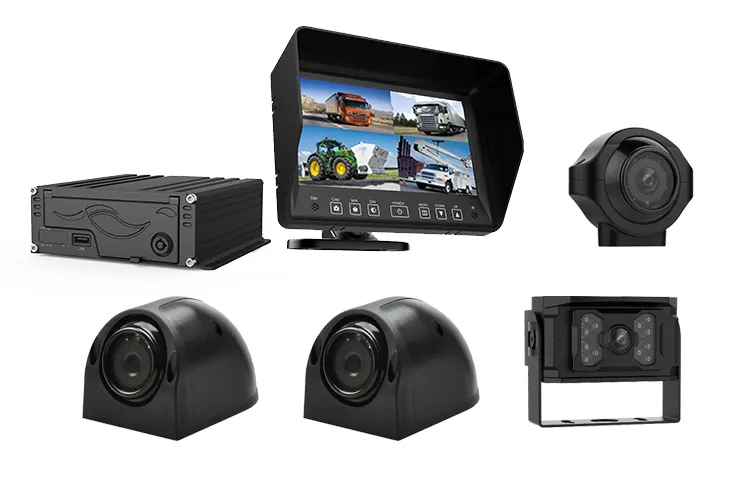

BR-MDVR04 system The system consists of an AHD monitor, a front-view camera, a rear-view camera and two side-view cameras. The popular 4 channel AHD DVR supports 4 channels real-time preview and storage with a 256G SD card. It has built-in high performance image processing chip, H.265 video compression code and high compression ratio. All waterproof cameras come with excellent night vision. They can provide the driver with a very clear image whether it is day or night.
|
Item No. |
BRVISION-MDVR04 |
|
Operating system |
Embedded Linux Operating System |
|
Operating language |
Chinese / English |
|
Operation interface |
Graphical menu operation interface, support mouse operation |
|
Password security |
User password, administrator password two-level management |
|
Video TV System |
PAL/NTSC |
|
video compression |
H.265 |
|
Resolution |
1080P/720P /960H/D1 |
|
Playback quality |
1080P/720P /960H/D1 |
|
Combination |
Various ways |
|
Decoding capability |
4-channel 1080P real time |
|
Video quality |
Levels 1 to 5 are available |
|
Screen Display |
1、2、3、4、9 picture view |
|
Audio Compression |
G.711A |
|
Audio recording |
Audio & Video synchronized recording |
|
Video mode |
Manual and alarm |
|
Video bit rate |
Full frame 3072mbps, 5 classes image quality optional |
|
Storage media |
Hard disk + SD card |
|
Video inquiry |
It can be retrieved by time, file, channel, recording type and alarm type |
|
Local Playback |
1-4 channels, by time, channel |
|
GPS |
Support detecting antenna Plug in/Unplug/Short circuit test |
|
2G/3G/4G |
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
|
WIFI |
802.11b/g/n，frequency 2.4GHz |
|
Power input |
DC：9V~40V |
|
Power output |
12V 2A |
|
Operating Temperature |
-40 --- 80℃(PCB) |
|
External Dimensions |
191mm*149mm*55mm |
DOWNLOAD CENTER
PICTURE CENTER
BR-MDVR04 System This system includes a 7" TFT digital monitor,4 1080P cameras and a MDVR. 4CH DVR with 4G & GPS &WIFI server platform with 4-channel AHD 1080P video input is now available. Hard disk + SD card Storage media. Anti-vibration 10G and anti-shock rating 100G. H.265 video compression code, high compression ratio, clear image. Built-in G-sensor and real vehicle driving behavior time monitoring can help drivers drive safely. The MDVR supports 4-channel real-time preview and storage. The DVR is usually installed in the car connecting with monitor and camera to work. It can work well in the extreme weather.
