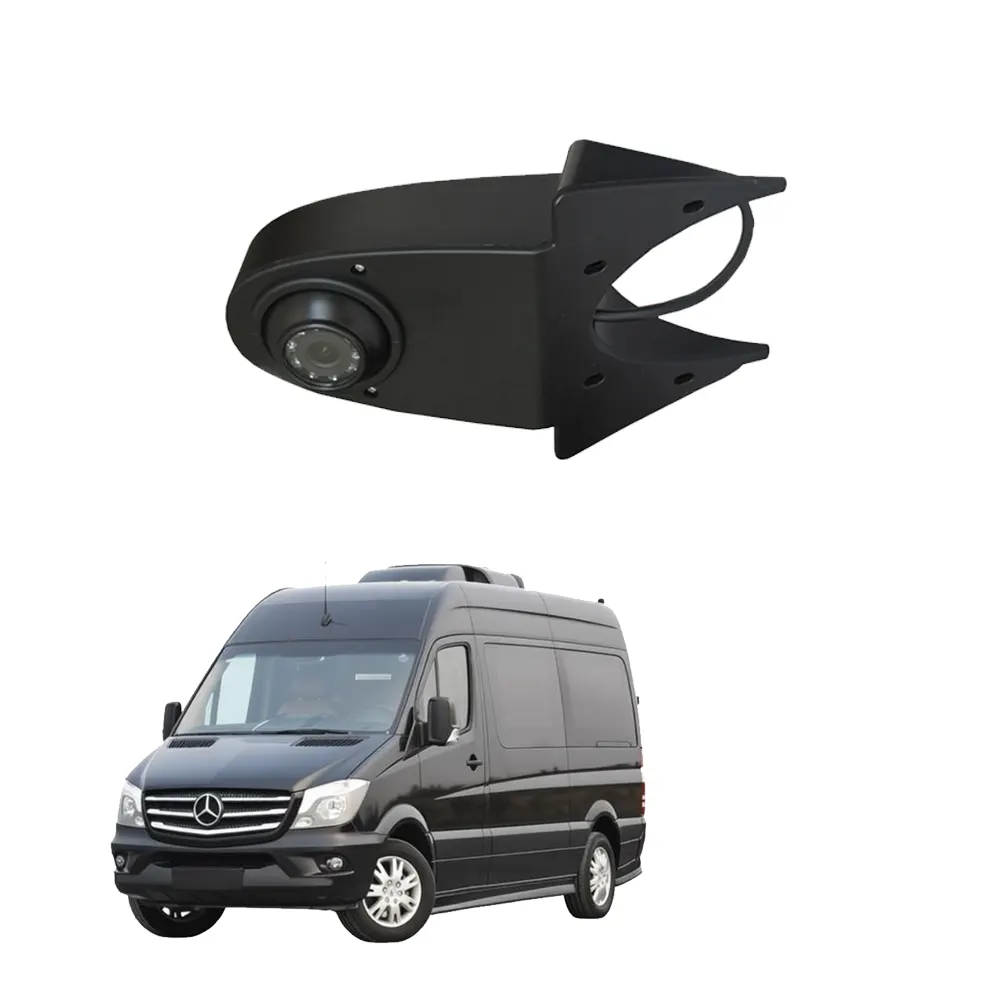

BR-RVC14 Shark Mount Bracket Waterproof Camera.
This camera comes with a shark mount bracket and is easy to install. The waterproof rating is IP69K. 720P and 1080P are optional. It has night vision with IR lighting. CE, E-mark, FCC, TS16949 are available.
|
Model |
BR-RVC14 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
10pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON);0Lux With IR |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.8mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
120° (D)、95°（H）、70°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 Pin Aviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
1 channel |
|
|
Audio Output |
1 channel |
|
|
General |
Material |
Metal& Plastic |
|
Operating Temperature |
-30℃~70℃ |
|
|
Power Supply |
DC 9-36V±10% |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
205.5*133.4*63.5mm（L*W*H) |
|
|
Weight Approx |
|
|
DOWNLOAD CENTER
PICTURE CENTER
Bracket mounted camera has a 120-degree wide-angle view. The camera is suitable for all kinds of cars, generally installed on the top of the rear end of the car. The camera supports video in night mode, providing users with safe travel solutions. No matter under the weather of rain or shine, hot or cold, your car’s backup camera will give you good service day or night.
