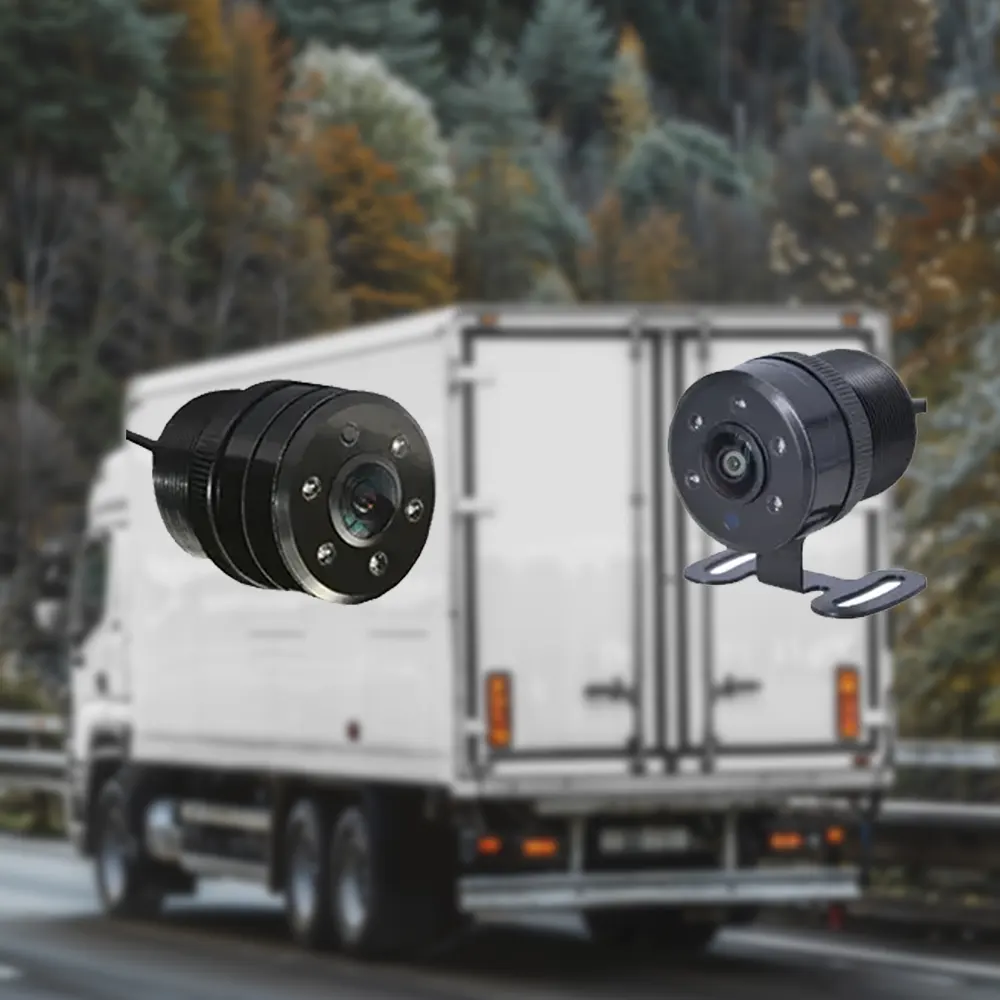

BR-MNC06-N Mini RCA connector camera
The waterproof rating is IP69K. The lens angle 102 degree., 160 degree for option. It support 700TVL, 1080P. Its power input is 9-36V, so it can be applied to more vehicles. 4pin lock connector and RCA connector, customized connector is also offered.
|
Model |
BR-RVC06-N |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
4pcs |
|
|
Min IIIumination |
1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.46mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
142° (D)、110°（H）、83°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P 1080P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 Pin Aviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
None |
|
|
Audio Output |
None |
|
|
General |
Material |
Metal |
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC9-36V±10%(From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
|
|
|
Weight Approx |
|
|
DOWNLOAD CENTER
PICTURE CENTER
The rearview camera has a compact design, which is suitable for all types of vehicles. The camera is usually mounted on the license plate at the rear of the vehicle and has a wide 160 degree view of sight. Ideal rear-view camera: waterproof coefficient is 69K, maximum and minimum temperature power is -30℃~80℃. Whether sunny or rainy, hot or cold, the car’s backup camera will give you good service day and night.
