BR-702WP Waterproof 7inch Monitor
This 7" monitor supports two camera inputs with two trigger cables. It is completely waterproof with an IP69K rating, strong and reliable. With a waterproof screen, working outdoors is possible. It comes with a 4P connector and 13 months warranty. The power input is 12-36V. This commercial grade monitor is the clearest and greatest monitor available on the market today.
|
MODEL |
BR-TM702WP |
|
Screen size |
7“ IPS Super TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
2 channels（CVBS/AH720P/AHD1080P） |
|
Audio Input |
2 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
2 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
188.3*132*68.5mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
N/A(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP69K |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER

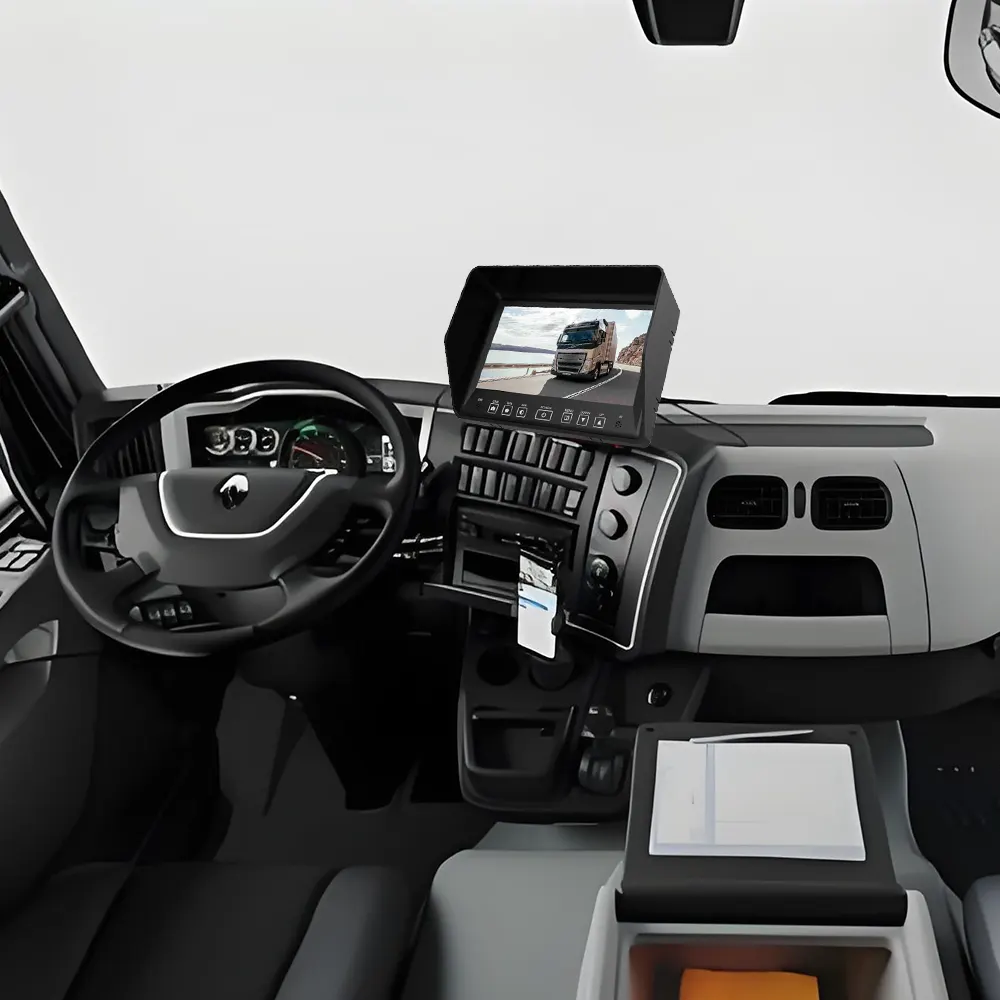

The IP69K monitor supports 2 channel video inputs，strong and shockproof.operated via remote/speaker control, It is suitable for car or truck monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
