BR-TM5001 5” monitor with 2-channel
This 5" monitor supports two camera inputs with two trigger cables. Multiple kinds of cameras are optional. It comes with high brightness of 500cd and high contrast. This product has been strictly inspected including high and low temperature test, anti-vibration test and aging test and so on. CE, E-mark, FCC, ATF16949 are available. It’s hot on sell in Europe and North American countries.
|
MODEL |
BR-TM5001 |
|
Screen size |
5 “ TFT panel |
|
Aspect Ratio |
4:3 image |
|
Video Input |
2 channels（CVBS） |
|
Audio Input |
N/A |
|
Speaker |
N/A |
|
Trigger |
2 channels |
|
Resolution |
800 x 3(RGB) x 480 |
|
Brightness |
500cd/m2 |
|
Contrast radio |
450:1 |
|
Viewing Angle |
H:75 V:75 |
|
External Dimensions |
147.2*127.8*55mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
2.6W(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER

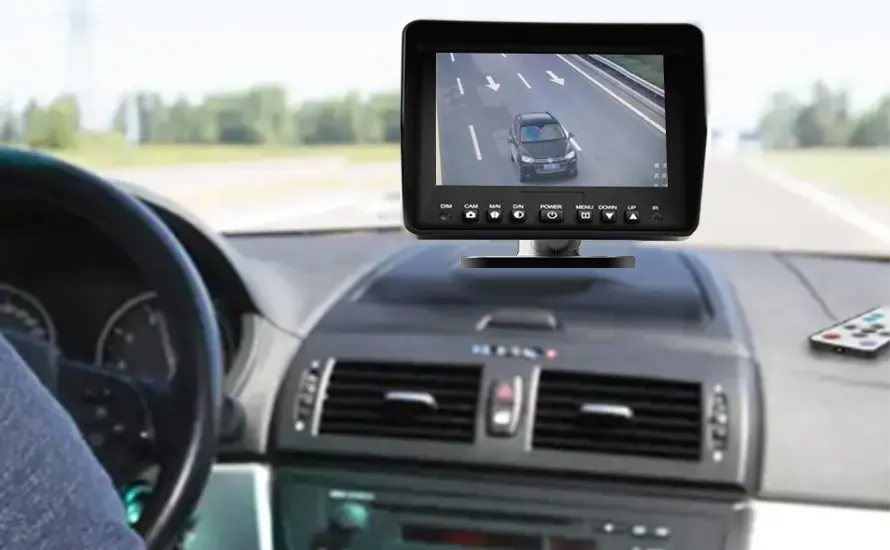

5 Inch TFT High Brightness Monitor The monitor supports 2 channel video inputs,strong and shockproof. It is suitable for car or truck monitoring.It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
