BR-TM1001 10” TFT digital monitor with 2 camera input
This 10.1" digital LCD monitor supports 1 camera input, which is really cost-effective. It is equipped with TFT panel, you can see the image at any angle. With sun visor and high resolution of 720P, we can get a better view when driving. It’s convenient to use with remote control and adjustable fan-shaped bracket. It is suitable for kinds of vehicles.
|
MODEL |
BR-TMQ1001-AHD |
|
Screen size |
10“ IPS Super TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
1 channels（CVBS） |
|
Audio Input |
1 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
3 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
600:1 |
|
Viewing Angle |
H:70 V:70 |
|
External Dimensions |
26.12*176.8*71.2mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
3.8W(No cameras) |
|
Operation Temperature: |
-40℃~+80℃.RH95% Max |
|
Storage Temperature: |
-45℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
A choice between two(Speaker&remote control) |
DOWNLOAD CENTER
PICTURE CENTER

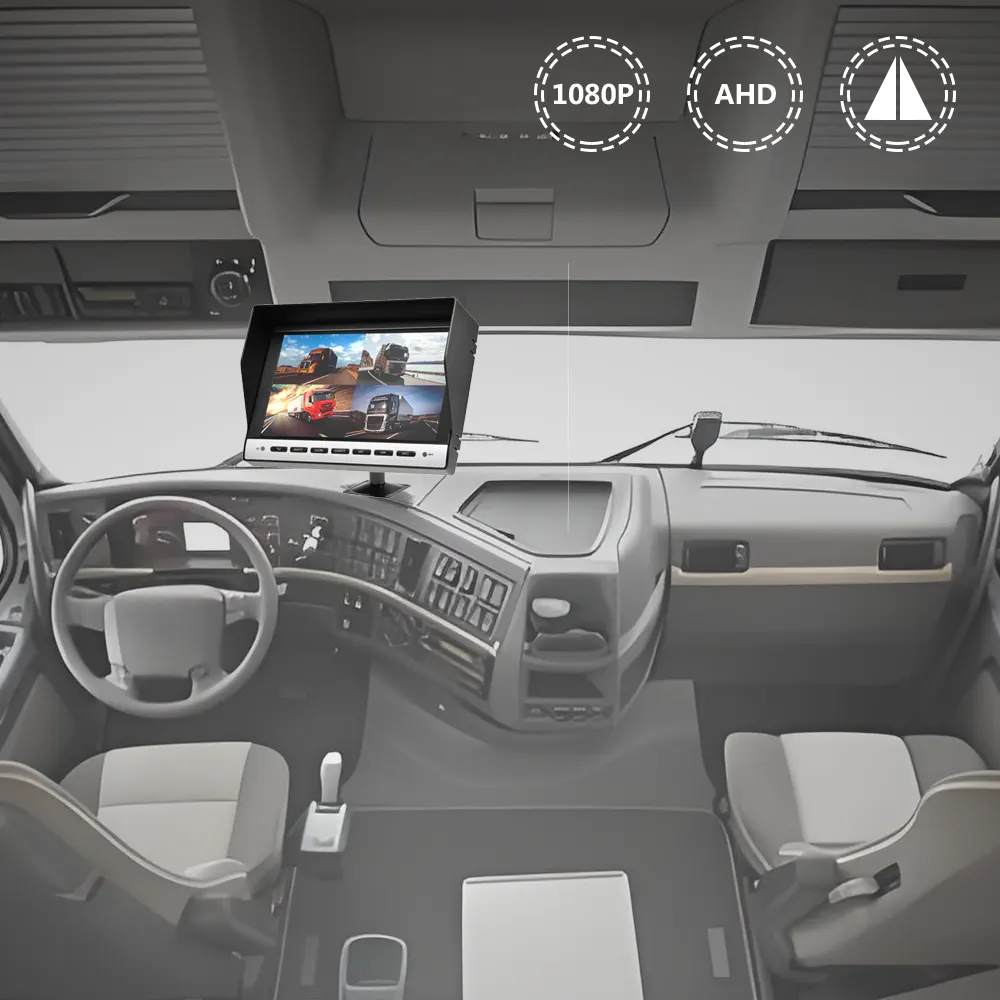

The monitor supports 2 channel video inputs,strong and shockproof. It is suitable for car or truck monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing,which can help drivers drive safely,because you can see every angle of the image. It can work well day and night.
